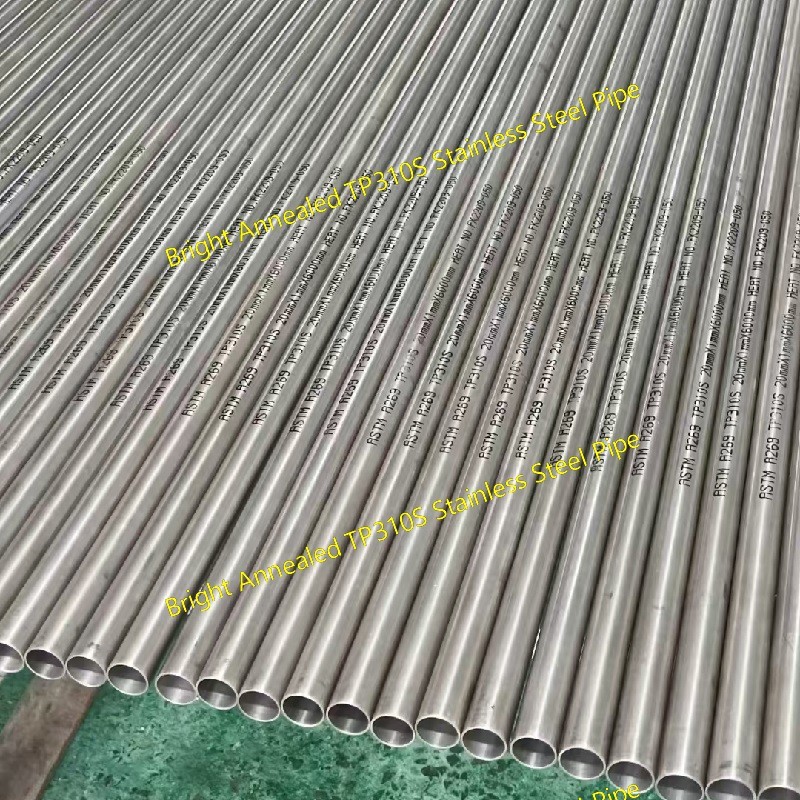

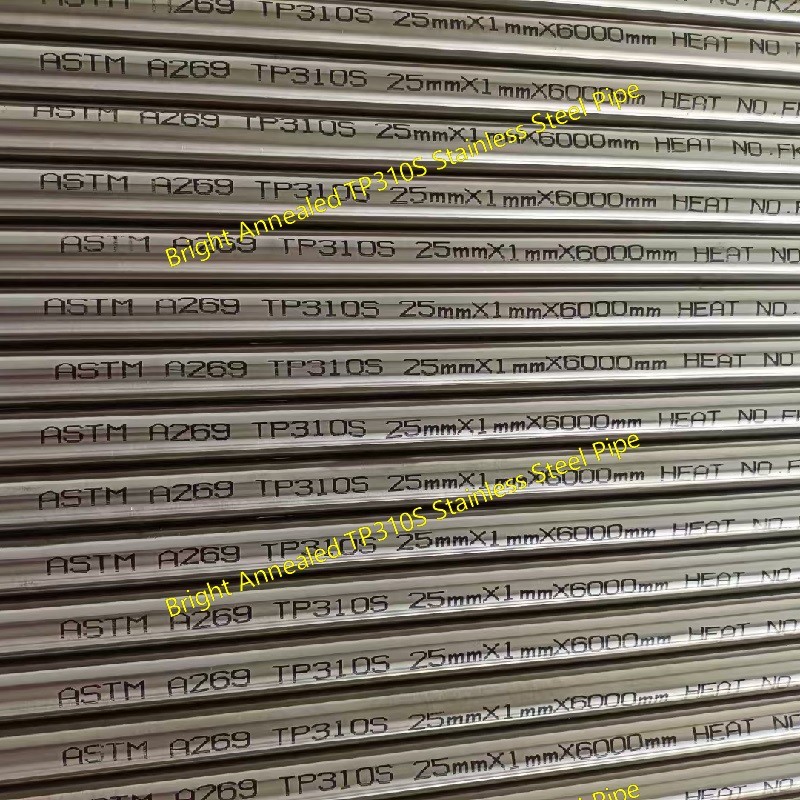

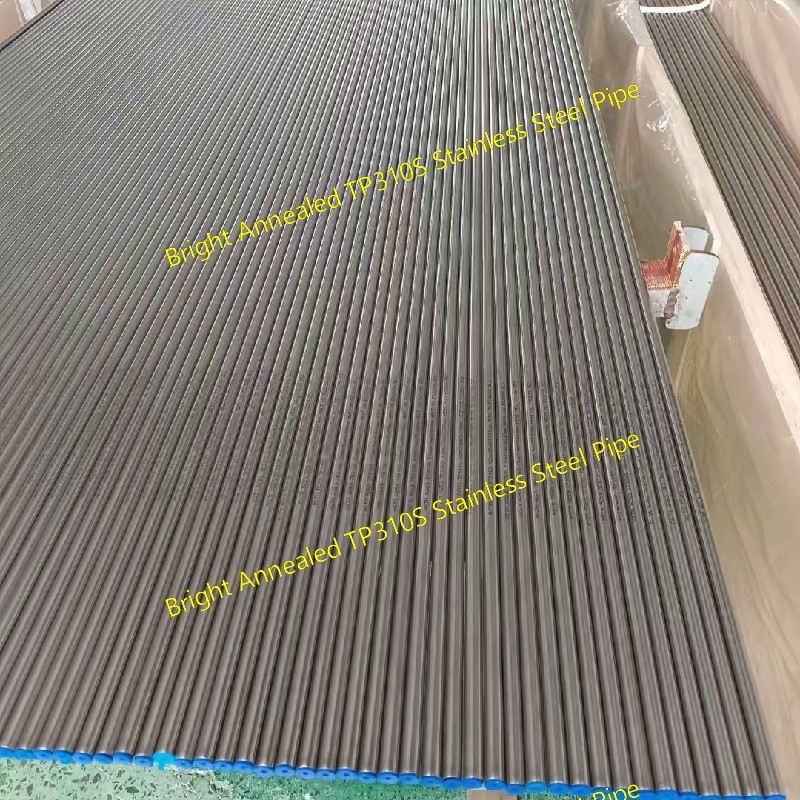

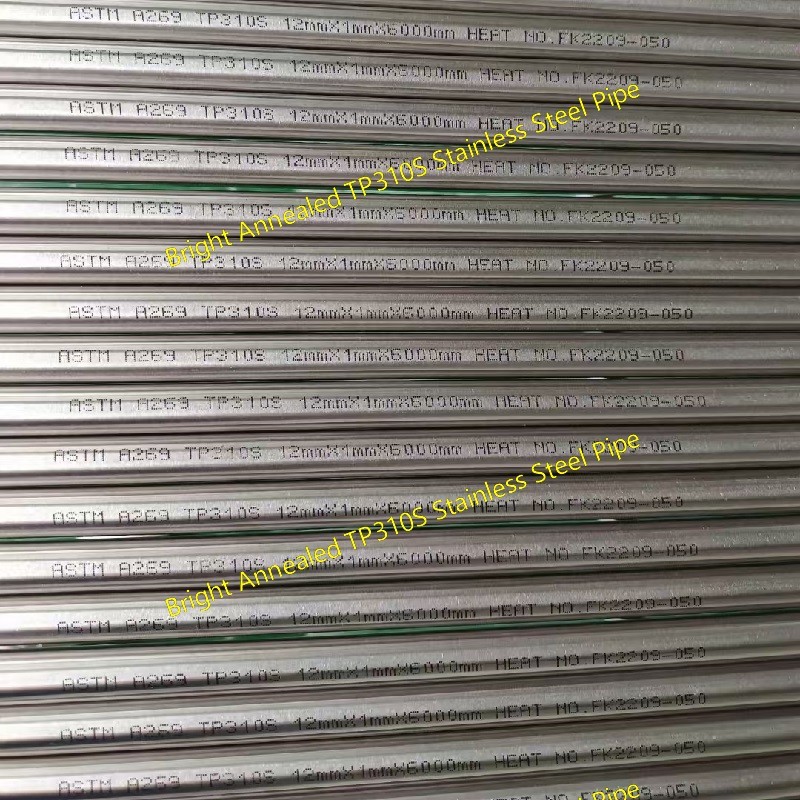

Bright Annealed TP310S Stainless Steel Seamless Pipe ±0.05mm Diameter Tolerance
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 310S 314 347 2205 2507 904L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | TP310S Stainless Steel Pipe | Grade | 304 316L 321 2205 310S 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or As Request |
| Diameter | 6 - 219mm Or As Clients Request | Wall Thickness | 0.4 - 8.0mm |
| Type | Seamless Pipe | Service | Cutting |
| Other Shape | Square, Rectangle | ||
| Highlight | BA Bright Annealed Stainless Steel Pipe,Seamless Bright Annealed Stainless Steel Pipe,TP310S Bright Annealed Stainless Steel Pipe |
||
Product Description
Bright Annealed TP310S Stainless Steel Pipe Seamless Pipe ±0.05mm Diameter Tolerance
Products Specification
| Standard | ASTM A213, ASTM A269, ASME SA213, ASME SA269 |
| Pipe Type | Bright Annealed Stainless Steel Tubing |
| Grades | 304, 304L, 316, 316L, 321, 310S, 2205, 2507 |
| Dimensions | Outer Diameter (OD): 1.00 mm to 76.2 mm |
| Wall Thickness | 0.2 mm to 6.0 mm |
| Length | Up to 12 meters (custom lengths available upon request) |
| Manufacturing Process | Cold Drawn, Bright Annealed, Seamless |
| Material Surface Finish | Bright Annealed (BA), Mirror Polished, No. 4 Finish |
| End Type | Plain End (PE), Beveled End (BE), Threaded End (TE) |
| Certifications | ISO 9001, EN 10204 3.1 / 3.2, PED, ASME |
310s grade stainless steel pipes are commercially used in various industries due to their high temperature operation and corrosion resistance in various environmental conditions. 310s grade stainless steel pipes are low carbon alloys that provide temporary operating values up to 1050 degrees Celsius in intermittent services. Daxun Alloys is one of the leading producers, suppliers and stockists of 310s grade stainless steel pipes.
Material Grade :
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
| Corrosion Test | If clients need will be conducted |
| Chemical Analysis | Will be tested as per required quality standards |
| Destructive / Mechanical Testing | Tensile / Hardness / Flattening |
| Eddy Current Testing | Using digital flaw-mark testing System to do test and mark in surface homogeneities |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Size |
OD : 4.76 - 25.4mm |
| WT : 0.71 - 2.11mm | |
| Length : >1000Meters | |
| 4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm | |
| 6 * 1mm / 6 * 1.5mm | |
| 6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm | |
| 7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm | |
| 9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm | |
| 10 * 1mm / 10 * 1.5mm | |
| 12 * 1mm / 12 * 1.5mm / 12 * 2mm | |
| 12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm | |
| 14 * 1mm / 14 * 1.5mm / 14 * 2mm | |
| 15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm | |
| 16 * 1mm / 16 * 1.5mm / 16 * 2mm | |
| 19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm | |
| 25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
