1/4 Inch-20 Inch Stainless Steel Seamless Pipe DIN 1.4301
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Seamless Pipe | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Similar Grade | 304L 316L 321 | Packing | Wooden Box Or PP Bag |
| Highlight | 20 Inch stainless steel seamless pipe,1/4 Inch stainless steel seamless pipe,1.4301 seamless stainless steel tube |
||
Product Description

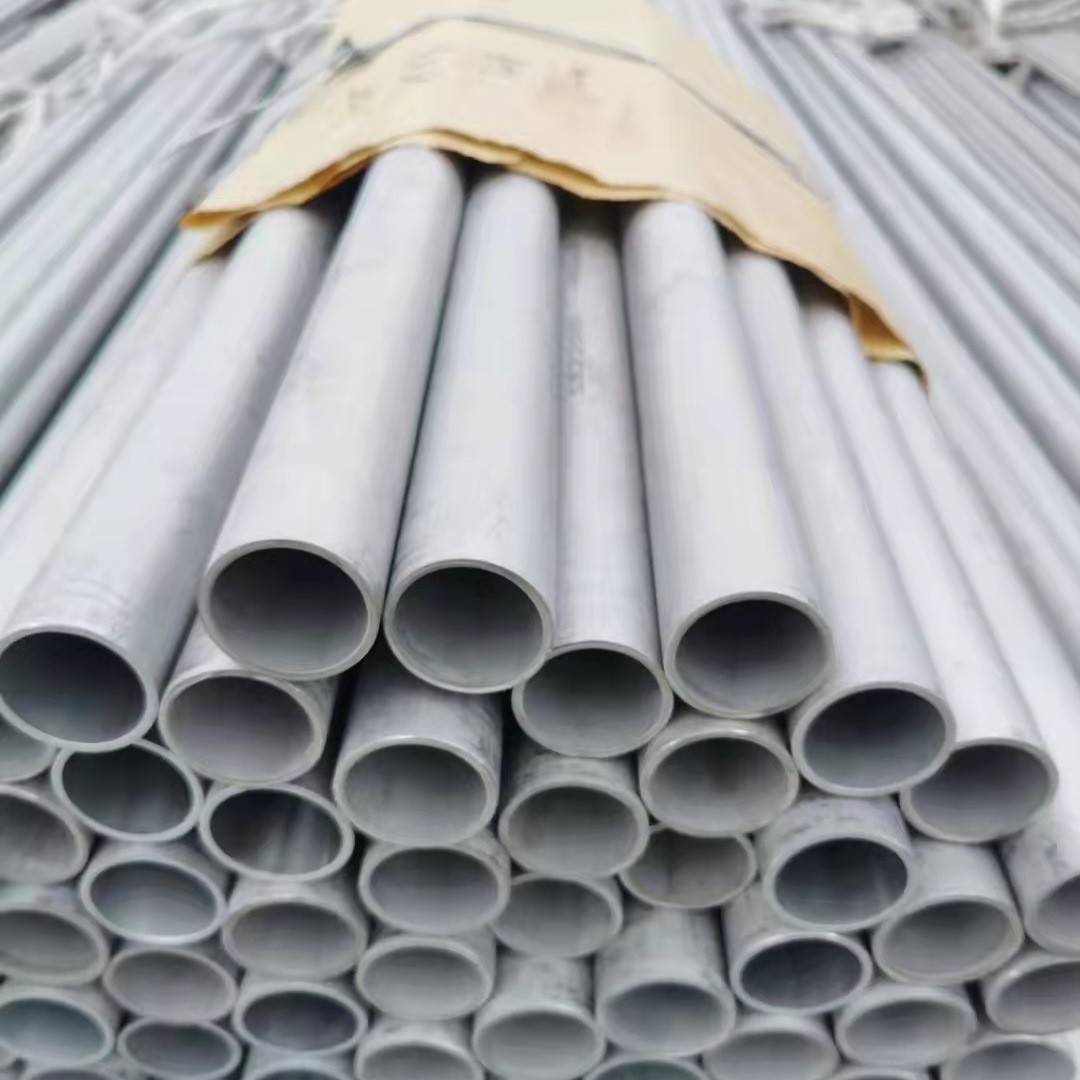

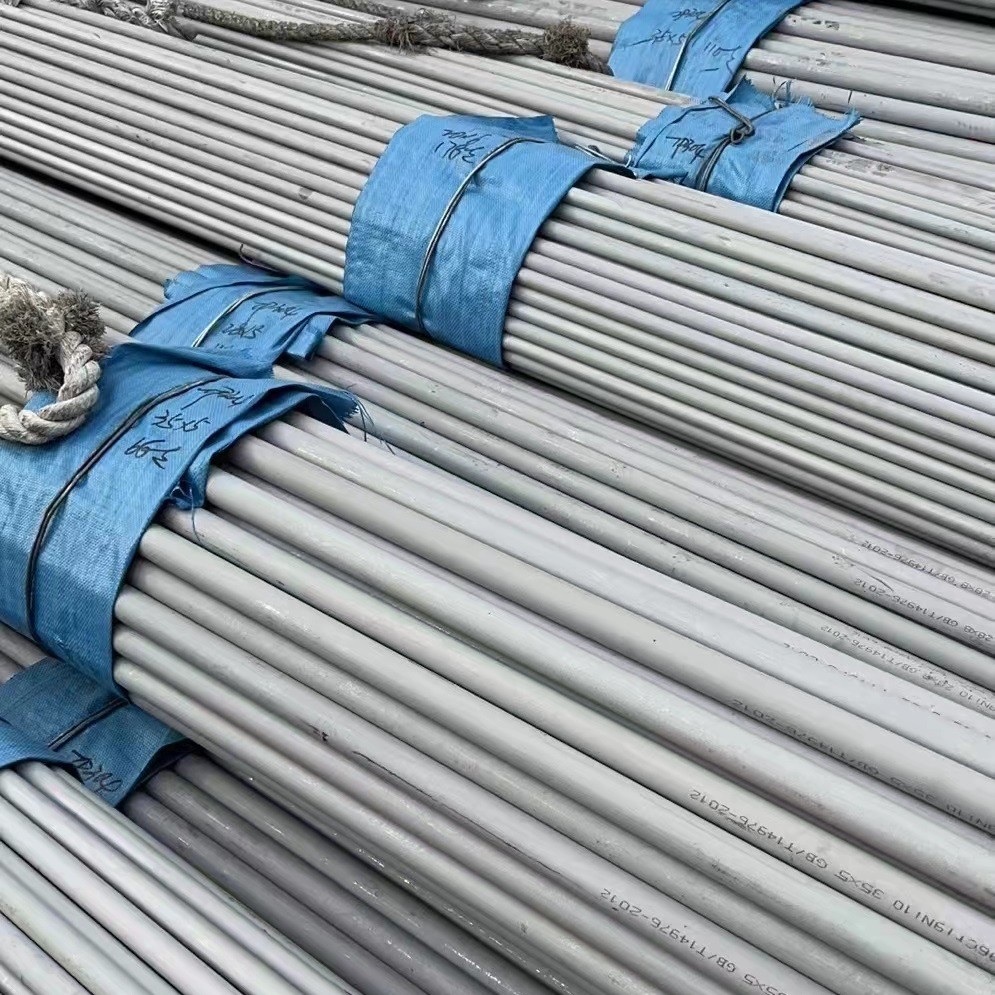

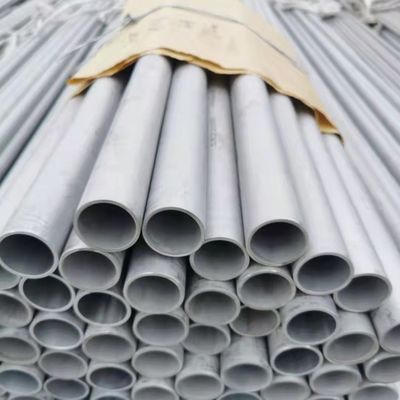

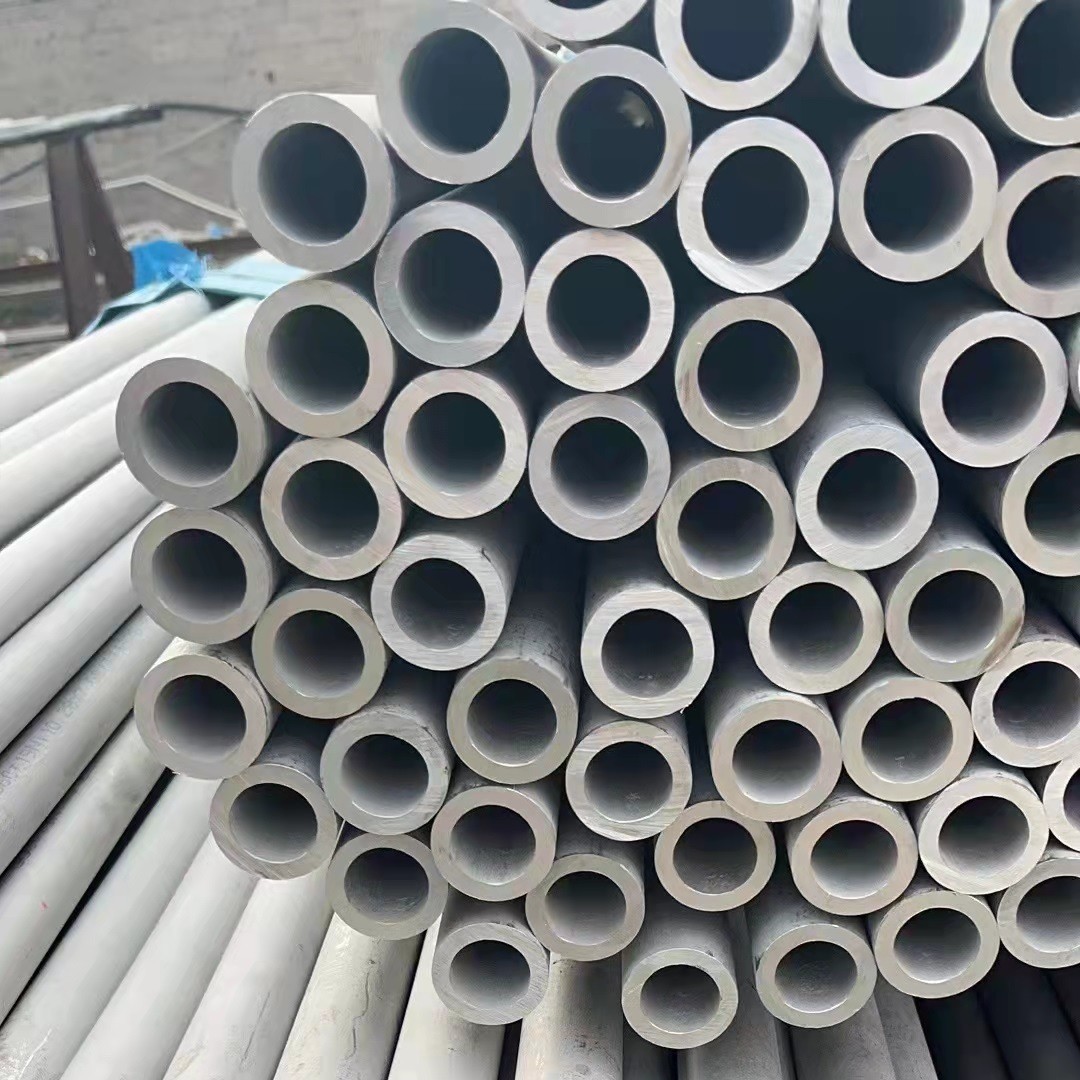

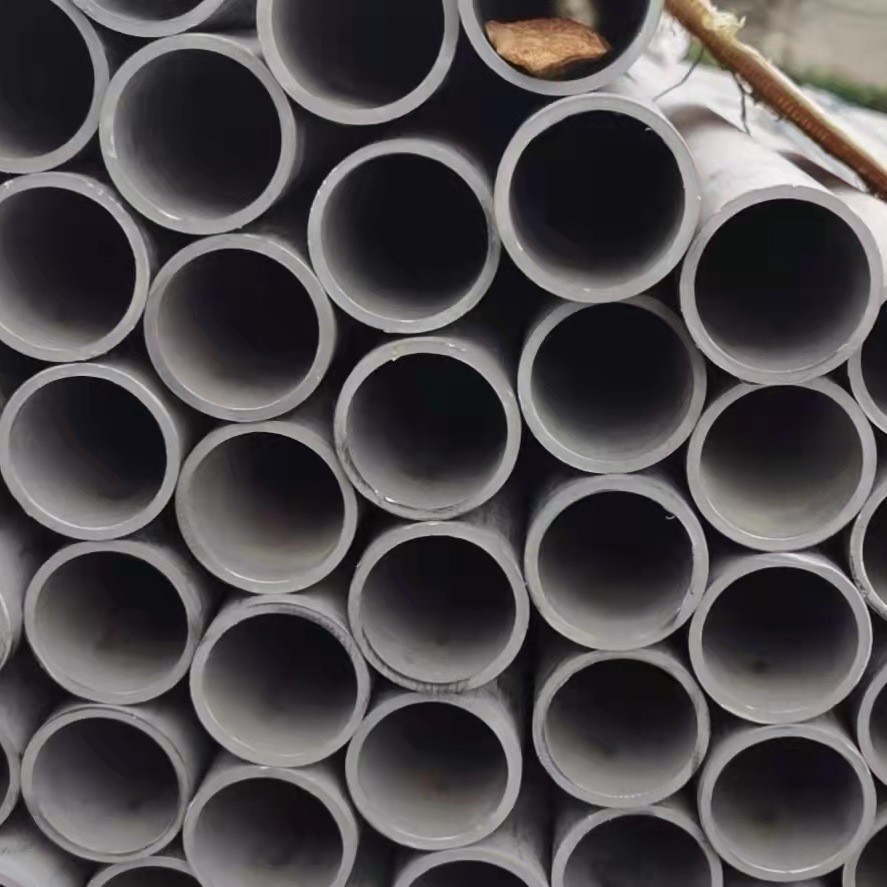

DIN 1.4301 SS Pipe Seamless Stainless Steel Pipe Diameter 1/4 inch -20 inch
EN 1.4301 Stainless Steel (X5CrNi18-10)
DIN EN 1.4301 stainless steel (X5CrNi18-10) is a conventional austenitic stainless steel with good resistance to atmospheric, organic and inorganic chemicals. This material is widely used due to its excellent intergranular corrosion resistance, good cold deformability, good deep drawability and weldability.
1.4306 (X2CrNi19-11) and 1.4307 (X2CrNi18-9) are ultra-low carbon versions of 1.4301. The purpose is to improve the corrosion resistance after welding and prevent carbide precipitation caused by stress relief for a long time.
DIN 1.4301 Magnetic
EN X5CrNi18-10 is non-magnetic in the annealed state, but it may become slightly magnetic due to the addition of martensite or ferrite during cold working or welding.
X5CrNi18-10 Datasheet
The following tables and lists give the SS 1.4301 datasheet including chemical composition, physical properties and mechanical properties etc.
DIN EN 1.4301 Chemical Composition
The following table shows the chemical composition of 1.4301 material base on cast analysis.
| Chemical Composition, % | |||||||||
| Country (Region) | Steel Grade (Material Number) | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | N, ≤ |
| European Union | X5CrNi18-10 (1.4301) | 0.07 | 1.00 | 2.00 | 0.045 | 0.015 | 17.5-19.5 | 8.0-10.5 | 0.10 |
| 0.07 | 1.00 | 2.00 | 0.045 | 0.030 | 17.5-19.5 | 8.0-10.5 | 0.10 | ||
Notes:
- EN 10088-2: Technical delivery conditions for stainless steel sheet/plate and strip of corrosion resisting steels for general purposes; Particular ranges of sulfur content may provide improvement of particular properties. For machinability a controlled sulfur content of 0,015 % to 0,030 % is recommended and permitted. For weldability, a controlled sulfur content of 0,008 % to 0,015 % is recommended and permitted. For polishability, a controlled sulfur content of 0,015 % max is recommended.
- EN 10088-3: Technical delivery conditions for semi‑finished stainless steel products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes.
Material X5CrNi18-10 Mechanical Properties
The following table gives the SS 1.4301 mechanical properties in the solution-annealed condition for steel sheet, steel plate and steel strip.
| Standard | Steel Name (Steel Number) | Product Condition | Thickness (mm), ≤ | 0,2 % proof strength (Mpa), (Transverse) | 1 % proof strength (Mpa), (Transverse) | Tensile strength (MPa) | Elongation (%), < 3mm thick | Elongation %, ≥ 4mm thick | Impact energy (J) KV2 > 10mm thick (Longitudinal) |
Impact energy (J) KV2 > 10mm thick (Transverse) |
| EN 10216-5 | X5CrNi18-10 (1.4301) | cold rolled strip | 8 | ≥230 | ≥260 | 540-750 | ≥45 | ≥45 | – | – |
| hot rolled strip | 13.5 | ≥210 | ≥250 | 520-720 | 100 | 60 | ||||
| hot rolled plate | 75 | ≥210 | ≥250 | 520-720 | 100 | 60 |
| Mechanical properties (solution annealed) | ||||||||
| Standard | Steel Grade (Steel Number) | Diameter (d) or Thickness (t) in mm | Hardness (HB) | 0.2% yield strength (MPa) | 1% yield strength (MPa) | Tensile strength (MPa) | Elongation (≥ %) | Impact energy (J) |
| EN10216-5 | X5CrNi18-10 | d≤160 | ≤ 215 | ≥ 190 | ≥ 225 | 500-700 | 45 (long.) | ≥ 100 (long.) |
| 160<t≤250 | 35 (tr.) | ≥ 60 (tr.) | ||||||
| Mechanical properties for bright bars (solution annealed) in conditions 2H, 2B, 2G or 2P | ||||||
| Standard | Steel Name (Material Number) | Diameter (d) or Thickness (t) in mm | 0.2% proof strength (MPa) | Tensile strength (MPa) | Elongation (long.), (≥ %) | Impact energy (long.), (J) |
| EN10216-5 | X5CrNi18-10 (1.4301) | d≤10 | 400 | 600-950 | 25 | – |
| 10<t≤16 | 400 | 600-950 | 25 | – | ||
| 16<t≤40 | 190 | 600-850 | 30 | 100 | ||
| 40<t≤63 | 190 | 580-850 | 30 | 100 | ||
| 63<t≤160 | 190 | 500-700 | 45 | 100 | ||
| 160<t≤250 | 190 | 500-700 | 35 (tr.) | 60 (tr.) | ||
| Mechanical properties at different temperatures (solution annealed) | ||||
| Standard | Steel (Material Number) | Temperature, °C (°F) | 0,2 % yield strength, MPa, ≥ | 1 % yield strength, MPa, ≥ |
| EN 10216-5 | X5CrNi18-10 (1.4301) | 100 | 157 | 191 |
| 150 | 142 | 172 | ||
| 200 | 127 | 157 | ||
| 250 | 118 | 145 | ||
| 300 | 110 | 135 | ||
| 350 | 104 | 129 | ||
| 400 | 98 | 125 | ||
| 450 | 95 | 122 | ||
| 500 | 92 | 120 | ||
| 550 | 90 | 120 | ||
Physical Properties
Notes:
- 10-6·K-1 = 10-6/K
- 1 Ω·mm²/m = 1 μΩ·m
- 1 g/cm3 = 1 kg/dm3 = 1000 kg/m3
- 1 GPa = 1 kN/mm2
- 1 MPa = 1 N/mm2
| Physical Properties | |
| Density, g/cm3 (lb/in.3) | 7.9 (0.29) |
| Melting point, °C (°F) | 1400-1455 (2550-2650) |
| Specific heat capacity, J/kg·K (Btu/lb ·°F) | 500 (0.12) at 20℃ (68 °F) |
| Electrical resistivity, μΩ·m | 0.73 at 20℃ (68 °F) |
| Magnetic | No |
| Magnetic permeability | 1.02 (Approximate) |
| Elastic modulus / Modulus of elasticity, GPa (103 ksi) | 200 (29) at 20℃ (68 °F) |
| 194 (28) at 100 °C (212 °F) | |
| 186 (27) at 200 °C (392 °F) | |
| 179 (26) at 300 °C (572 °F) | |
| 172 (25) at 400 °C (752 °F) | |
| 165 (24) at 500 °C (932 °F) | |
| Thermal conductivity, W/m·K (Btu/ft · h ·°F) | 15 (8.67) at 20 °C (68 °F) |
| Coefficient of thermal expansion, 10-6/K | 16.0 at 20-100 ℃ (68-212 °F) |
| 16.5 at 20-200 ℃ (68-392 °F) | |
| 17.0 at 20-300 °C (68-572 °F) | |
| 17.5 at 20-400 °C (68-752 °F) | |
| 18.0 at 20-500 °C (68-932 °F) | |
Welding
EN 1.4301 stainless steel can be easily welded by various conventional welding methods, but since the material is not resistant to intergranular corrosion after welding, if it is necessary to weld larger parts and cannot perform solution annealing after welding, 1.4307 stainless steel should be selected. The surface state has a relatively large influence on the corrosion resistance of the steel, so that the polished surface generally has superior corrosion resistance than the rough surface.
Corrosion Resistance
DIN EN 1.4301 stainless steel has good atmospheric corrosion resistance up to 300 °C, and good resistance to many (lightly corrosive) organic and inorganic chemicals. It can also be used at very low temperatures, but there are some limitations in marine, coastal and chloride-containing solutions.
Heat Treatment
- Solution annealing: 1000 – 1100 ℃ (cooling: water, air)
- Hot forming: 1200 – 900 ℃ (cooling: air)
Hardening
EN 1.4301 stainless steel cannot be hardened by heat treatment, but can be hardened by cold working.
Applications
Due to its good corrosion resistance, processability and weldability, EN 1.4301 stainless steel is widely used in chemical, tableware, watches, auto parts, medical equipment, architectural decoration, aerospace and electrical appliances.
DIN 1.4301 Material Equivalent Grades
EN 1.4301 stainless steel (X5CrNi18-10) equivalent to US ASTM AISI SAE, ISO, European Union (Germany DIN, British BSI, France NF…), Japanese JIS and Chinese GB standard (For reference).
| EN X5CrNi18-10 material equivalent | |||||||||
| European Union | US | ISO | China | Japan | |||||
| Standard | Steel Name (Material Number) | Standard | Grade (UNS) | Standard | Grade | Standard | Grade | Standard | Grade |
| EN 10088-2; EN 10088-3; EN 10088-1 |
X5CrNi18-10 (1.4301) | AISI; ASTM A240/A240M; A276/A276M |
AISI 304 (UNS S30400) | ISO 15510 | X5CrNi18-10 | GB/T 20878; GB/T 1220; GB/T 3280 |
06Cr19Ni10; 0Cr18Ni9 (Old designation) |
JIS G4304 | SUS304 |
