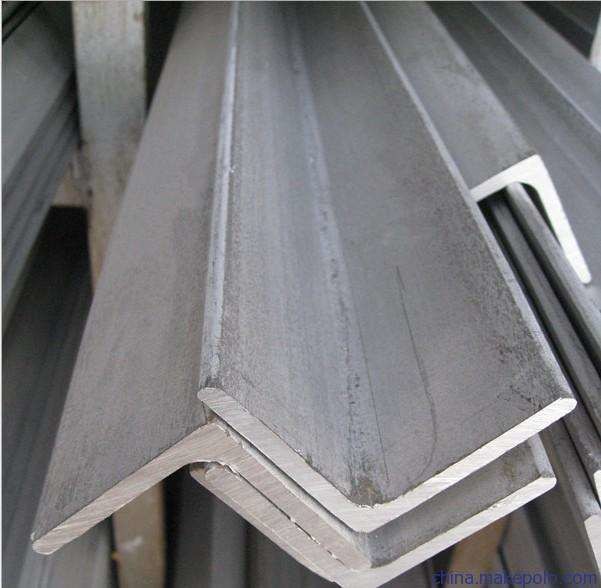

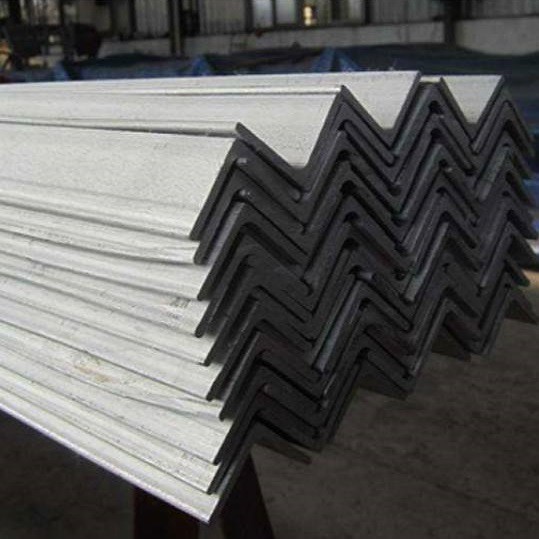

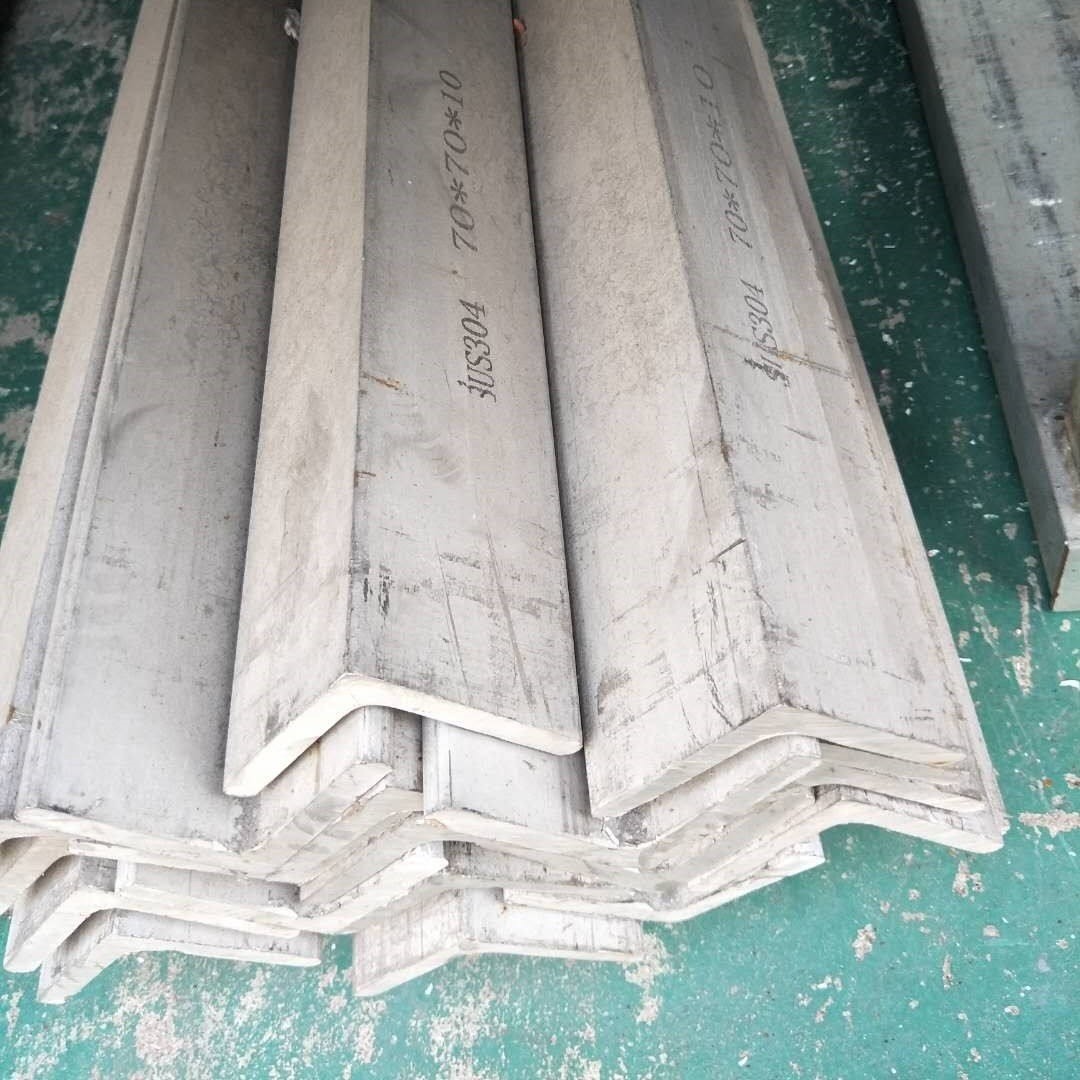

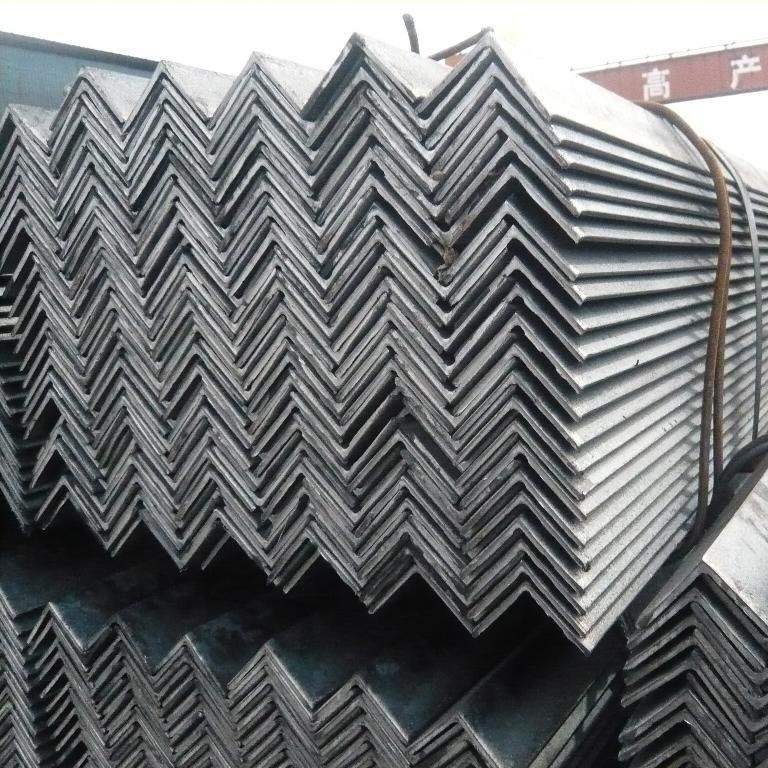

Hot Rolled 201 304 316L Stainless Steel Angle Bar
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316l.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Angle Bar | Diameter | 30*30-200-200 |
|---|---|---|---|
| Length | 6m | Standard | ASTM GB EN |
| Grade | 201 304 316L 310S 2205 | Type | Equal Angle |
| Othershape | Round ,flat, Square, Hexagonal | Service | Cutting |
| Highlight | Hot Rolled Stainless Steel Angle Bar,316L Stainless Steel Angle Bar,304 Stainless Steel Angle Bar |
||
Product Description
Hot Rolled 201 304 316L Stainless Steel Angle Bar Stainless Angle Bar / Angle Steel Bar
Product Description
304 316L 310S Stainless Steel Angle Bar Equal/Unequal
304 stainless steel angel bar
Equal angel steel bar and unequal angle steel bar
Stainless steel angel bar:long strips of steel perpendicular to each other in the form of angles
Stainless steel equal angel bar/stainless steel unequal angel bar
Product description of stainless steel angle bar
| Product Name | Stainless steel angel bar |
| Material | 304 316 310s 2205 |
| Price term | FOB/CIF/CFR/EXW |
| Standard | AISI ASTM JIS |
| Packing | According to the requirements |
| Certifactions | ISO/SGS/BV |
| Delivery time | 5-10 days,Based on stock and order quantity |
| Payment term | 30% deposit by T/T,70% before shipment |
Chemical composition
Application
Angle steel can be made up of various bearing members according to the different needs of the
structure,and can also be used as a joint between members
Widely used In various construction structures and engineering structures, such as building
beams, Bridges,transmission towers, hoisting and transportation machinery, ships, industrial
furnaces, reaction towers, container racks, cable trench supports, power distribution pipes, bus
support installation,and warehouse shelves
Size
| Specification (side length * thickness)mm |
Quality(kg/m) | Specification (side length * thickness)mm |
Quality(kg/m) |
| 20*3 | 0.89 | 80*5 | 6.21 |
| 20*4 | 1.15 | 80*6 | 7.38 |
| 25*3 | 1.12 | 80*7 | 8.53 |
| 25*4 | 1.46 | 80*8 | 9.66 |
| 30*3 | 1.37 | 80*10 | 11.87 |
| 30*4 | 1.79 | 90*6 | 8.35 |
| 36*3 | 1.66 | 90*7 | 9.66 |
| 36*4 | 2.16 | 90*8 | 10.95 |
| 36*5 | 2.65 | 90*10 | 13.48 |
| 40*3 | 1.85 | 90*12 | 15.94 |
| 40*4 | 2.42 | 100*6 | 9.37 |
| 40*5 | 2.98 | 100*7 | 10.83 |
| 45*3 | 2.09 | 100*8 | 12.28 |
| 45*4 | 2.74 | 100*10 | 15.12 |
| 45*5 | 3.37 | 100*12 | 17.9 |
| 45*6 | 3.99 | 100*14 | 20.61 |
| 50*3 | 2.33 | 100*16 | 23.26 |
| 50*4 | 3.06 | 110*7 | 11.93 |
| 50*5 | 3.77 | 110*8 | 13.53 |
| 50*6 | 4.46 | 110*10 | 16.69 |
| 56*3 | 2.62 | 110*12 | 19.78 |
| 56*4 | 3.45 | 110*14 | 22.81 |
| 56*5 | 4.25 | 125*8 | 15.5 |
| 56*8 | 6.57 | 125*10 | 19.13 |
| 63*4 | 3.91 | 125*12 | 22.7 |
| 63*5 | 4.82 | 125*14 | 26.19 |
| 63*6 | 5.72 | 140*10 | 21.49 |
| 63*8 | 7.47 | 140*12 | 25.52 |
| 63*10 | 9.15 | 140*14 | 29.49 |
| 70*4 | 4.37 | 140*16 | 33.39 |
| 70*5 | 5.4 | 160*10 | 24.73 |
| 70*6 | 6.41 | 160*12 | 29.39 |
| 70*7 | 7.4 | 160*14 | 33.99 |
| 70*8 | 8.37 | 160*16 | 38.52 |
| 75*5 | 5.82 | 180*12 | 33.16 |
| 75*6 | 6.91 | 180*14 | 38.38 |
| 75*7 | 7.98 | 180*16 | 43.54 |
| 75*8 | 9.03 | 180*18 | 48.63 |
| 75*10 | 11.09 | 200*14 | 42.89 |
| 200*16 | 48.68 | ||
| 200*18 | 54.4 | ||
| 200*20 | 60.06 | ||
| 200*24 | 71.17 |
Our serives
a. Superior Quality.
All of the materials we used are 1st Class , our stainless steel product are all high-quality , equipment and technics are very advanced.
We pay much attention to every details of the quality from production to package.
We pay much attention to every details of the quality from production to package.
b. Competitive Prices.
We ourselves bought material for our professional subsidiary factory to apply to producing, therefore,
our cost is lower than others and the prices are much more competitive.
c. Good sale Services:
our cost is lower than others and the prices are much more competitive.
c. Good sale Services:
(1) 24 hours, technical support by e-mail
(2) 7 days,promise to take back unsatisfactory goods
(3) 3 month quantity assurance
(4) 1 year,more orders,more discount
(2) 7 days,promise to take back unsatisfactory goods
(3) 3 month quantity assurance
(4) 1 year,more orders,more discount
